HIGHLIGHTS
• Gain up to 15hp/15tq
• Improves Turbo Spool
• Increases Intake Sound
• Integrated Heat Shield
• Massive 4" Intake Pipe
• Ideal for Tuned Engines
• Supports Hybrid/Upgraded Turbos
• SAI Filter Included
• 45 Minute Installation
PROFILE

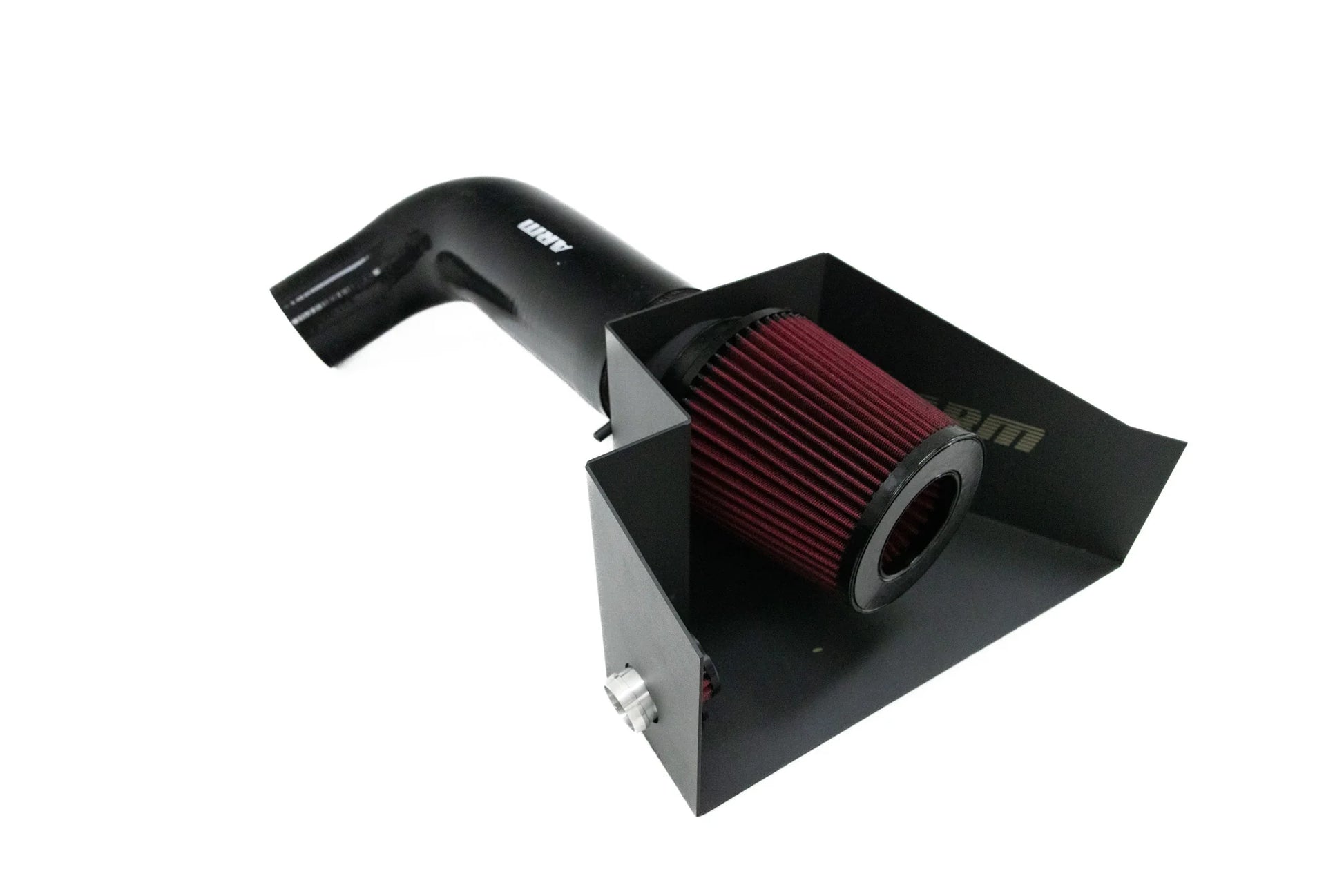

The ARM MK7 GTI/GOLF R Intake Kit was designed to increase airflow on your 2.0T by removing the stock intake restrictions. Upgrading to the ARM MK7 Intake allows your 2.0T to produce more power and torque throughout the RPM range, especially at higher RPM.
The ARM MK7 Intake is ideal for tuned IS20, IS38, and upgraded turbo equipped 2.0T's.
CONSTRUCTION
The ARM MK7 GTI / GOLF R Intake features a
class-leading 4" inlet size at the air filter to maximize airflow
for even the most demanding builds. The ARM intake tube is built as a
single piece of 6-layer reinforced silicone
for a seamless transition to the 2.75" stock turbo inlet or the ARM MK7 Turbo Inlet. The solid construction of the inlet tube allows it to maintain its geometry during the most aggressive driving.
Installation of the ARM MK7 GTI / Golf R Intake will
open up the sound of your turbo and enhance the intake sounds of your 2.0T
. You can expect to hear significantly increased volume of your turbo spool on acceleration, as well as a very audible venting of air when letting off the throttle.
Included with the ARM MK7 GTI / GOLF R Intake kit is our
heat shield finished in textured black
, and designed to fit the factory air duct perfectly. This is ideal if you plan to run a modified factory air duct. The connecting pipe between the air filter and
intake pipe is welded into the heat shield
to allow for a seamless design, minimizing areas for engine bay heat to sneak past the heat shield
, keeping cool air and engine bay heat separated as much as possible. The connection pipe has a tap for reinstallation of the factory vacuum line. The heat shield is complete with soft rubber trim around the upper edge to create a snug seal with the hood, minimizing exposure to engine bay heat.
The air filter in the ARM MK7 Intake Kit utilizes an inverted design to maximize surface area.
Combining the inverted filter design with the massive 5.5" base gives you
over 300 cubic inches of filter surface area
.
The ARM MK7 Intake comes
complete with an integrated SAI Filter
which installs directly into the heat shield, allowing access to cooler air for the secondary air intake.

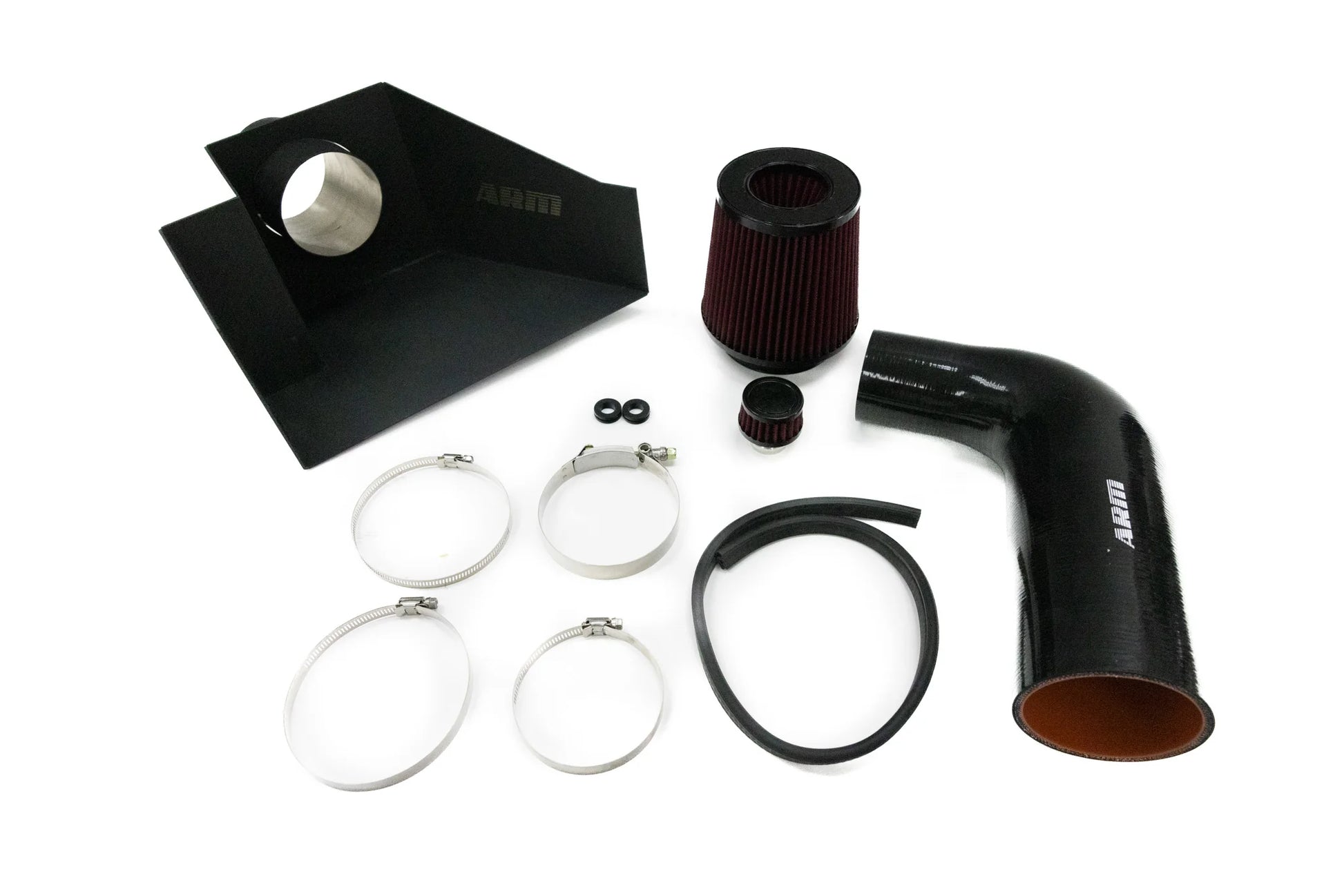

IN THE BOX
•ARM Dry Air Filter
•ARM Reinforced Inlet Tube
•ARM Textured Black Heat Shield
•ARM SAI Filter
•Mounting Hardware
FITMENT GUIDE
Make
Model
Submodel
Engine
Audi
8V S3
Quattro
2.0T
Audi
A3 8V
FWD
1.8T
Audi
A3 8V
FWD
2.0T
Audi
A3 8V
Quattro
2.0T
Audi
MK3 TT (2014+)
Quattro
2.0T
Volkswagen
Alltrack
All
1.8T Gen3
Volkswagen
Golf VII
Hatchback
1.8T Gen3
Volkswagen
Golf VII
Sportwagen
1.8T Gen3
Volkswagen
Golf VII
Hatchback
2.0T Gen3
Volkswagen
Golf VII Facelift
FWD
1.8T Gen3
Volkswagen
Golf VII Facelift
FWD
2.0T Gen3
Volkswagen
Golf VII R
4Motion
2.0T Gen3
Volkswagen
Golf VII R Facelift
4Motion
2.0T Gen3
Volkswagen
Golf VII SportWagen Facelift
4Motion
1.8T Gen3
Volkswagen
Golf VII SportWagen Facelift
FWD
1.8T Gen3
Volkswagen
Jetta VII
GLI
2.0T Gen3
