HIGHLIGHTS
• Increase HP / TQ• 120% Larger Front Area
• ULTRA-Dense Fin Packs
• Outperforms Standard Stepped FMIC's
• Fully Reversible
PROFILE
An ARM F30 Intercooler upgrade is one of the best modifications you can make to your N20/N26 or N55 powered BMW. The F3X's significant weak-point is its stock intercooler. This becomes obvious when tuning your F30 to increase boost with a Stage 1 tune and even more so with a Stage 2+ tune. With a higher boost target the charged air coming out of the turbo is hotter, therefore increasing IAT's. To compensate for the higher IAT's the ECU (DME) reduces boost, timing, and overall power to protect the engine. The ARM F3X FMIC Kit keeps your IAT's low allowing you to maximize the power your N20/N26 or N55 is capable of making.
CONSTRUCTION

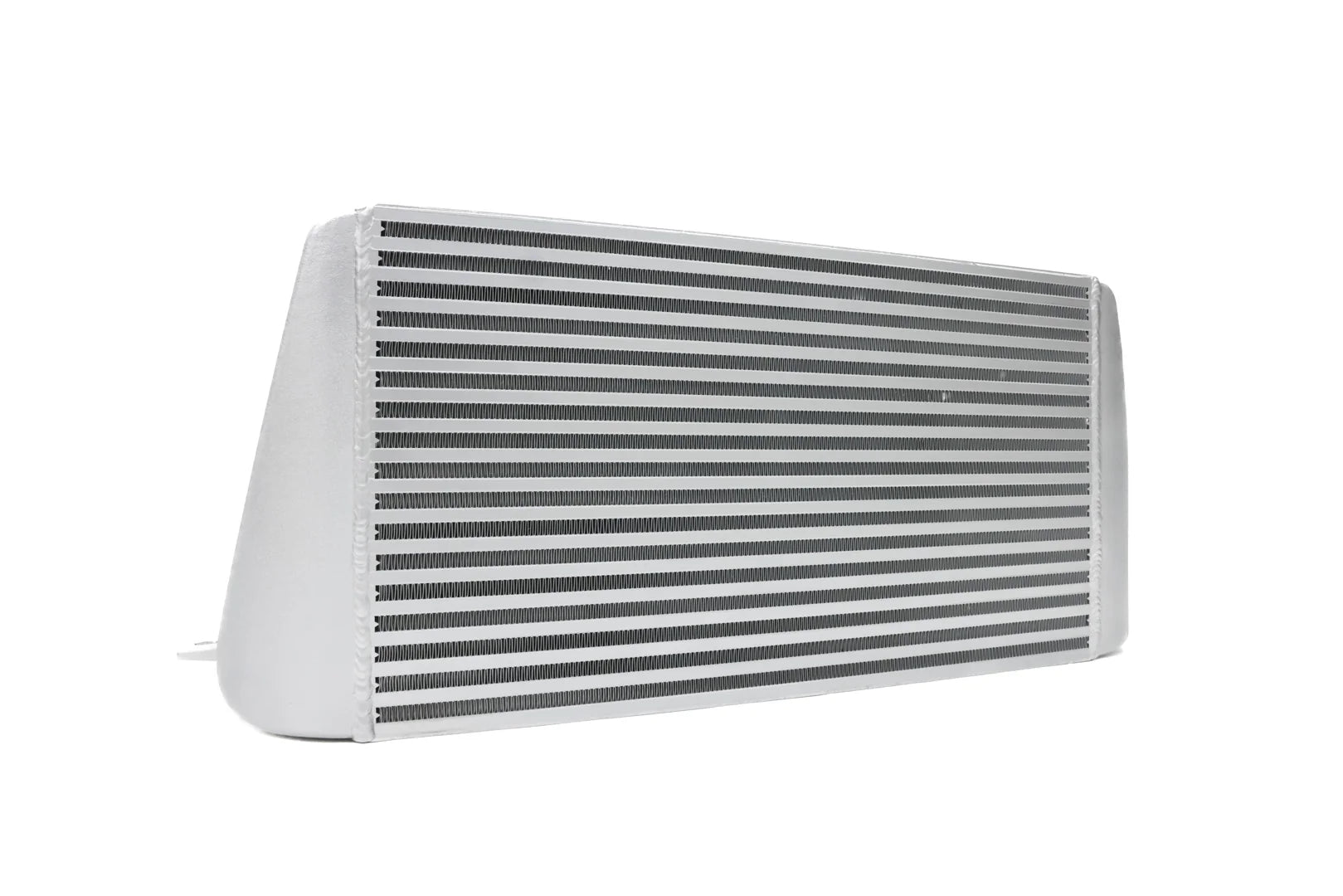

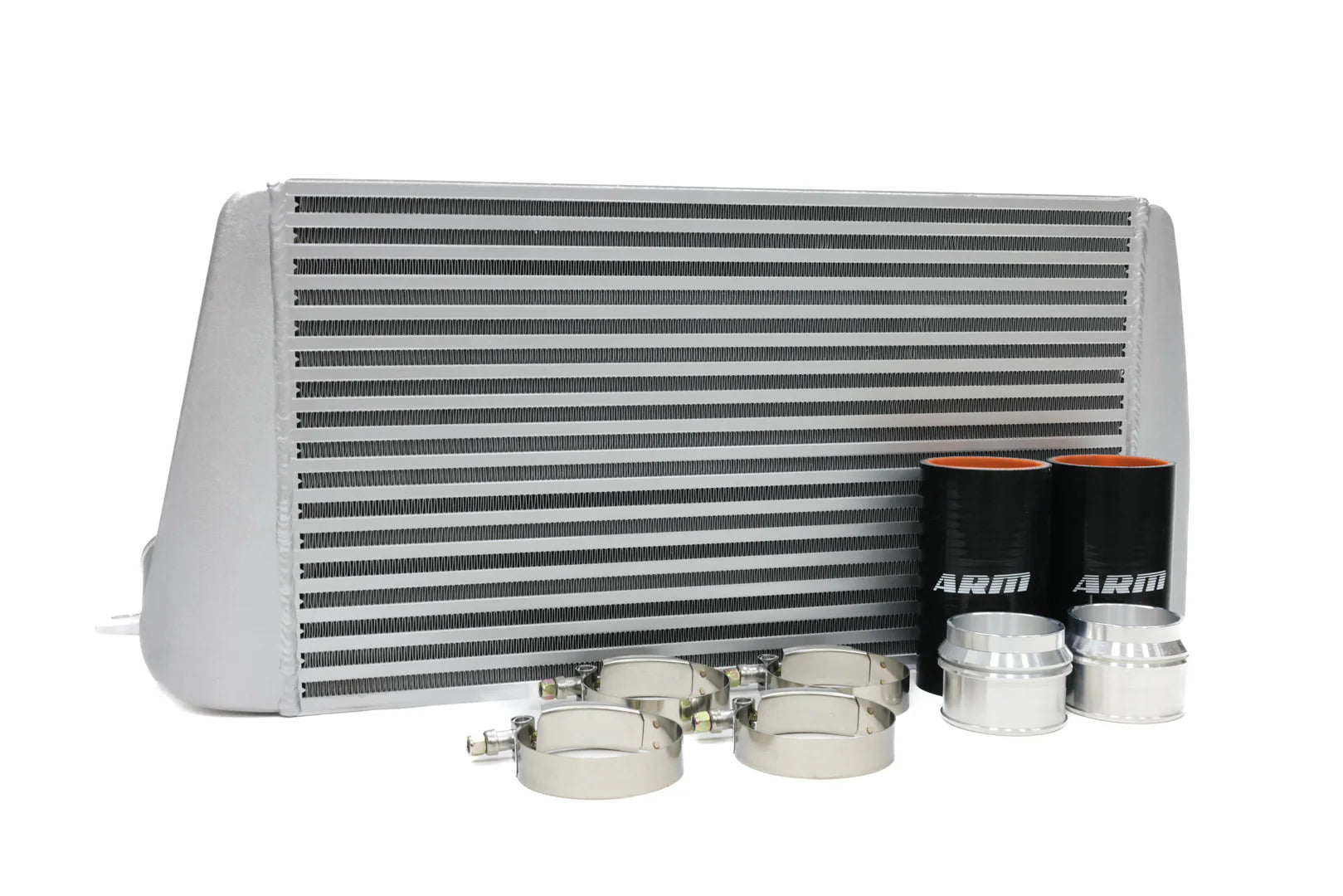

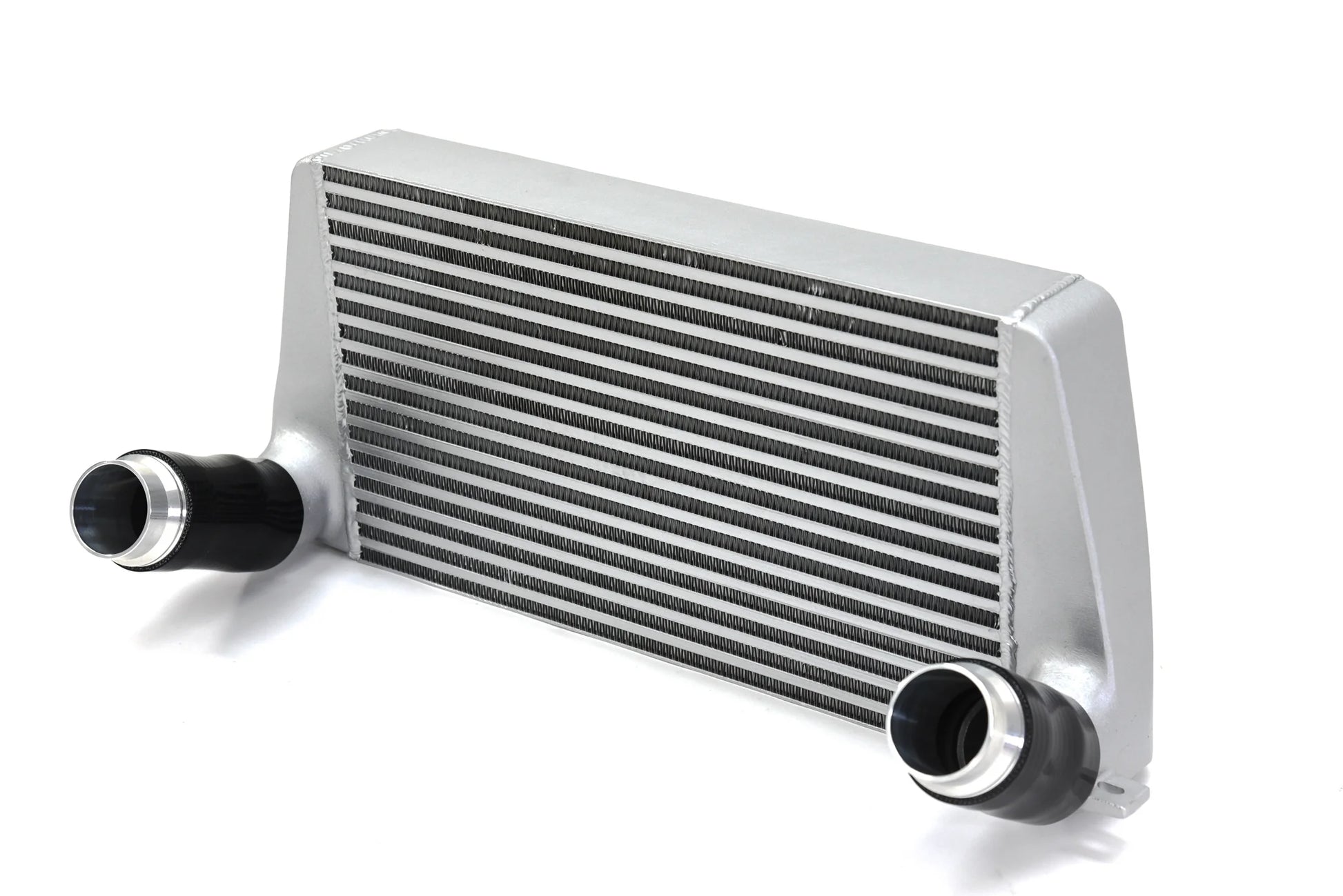

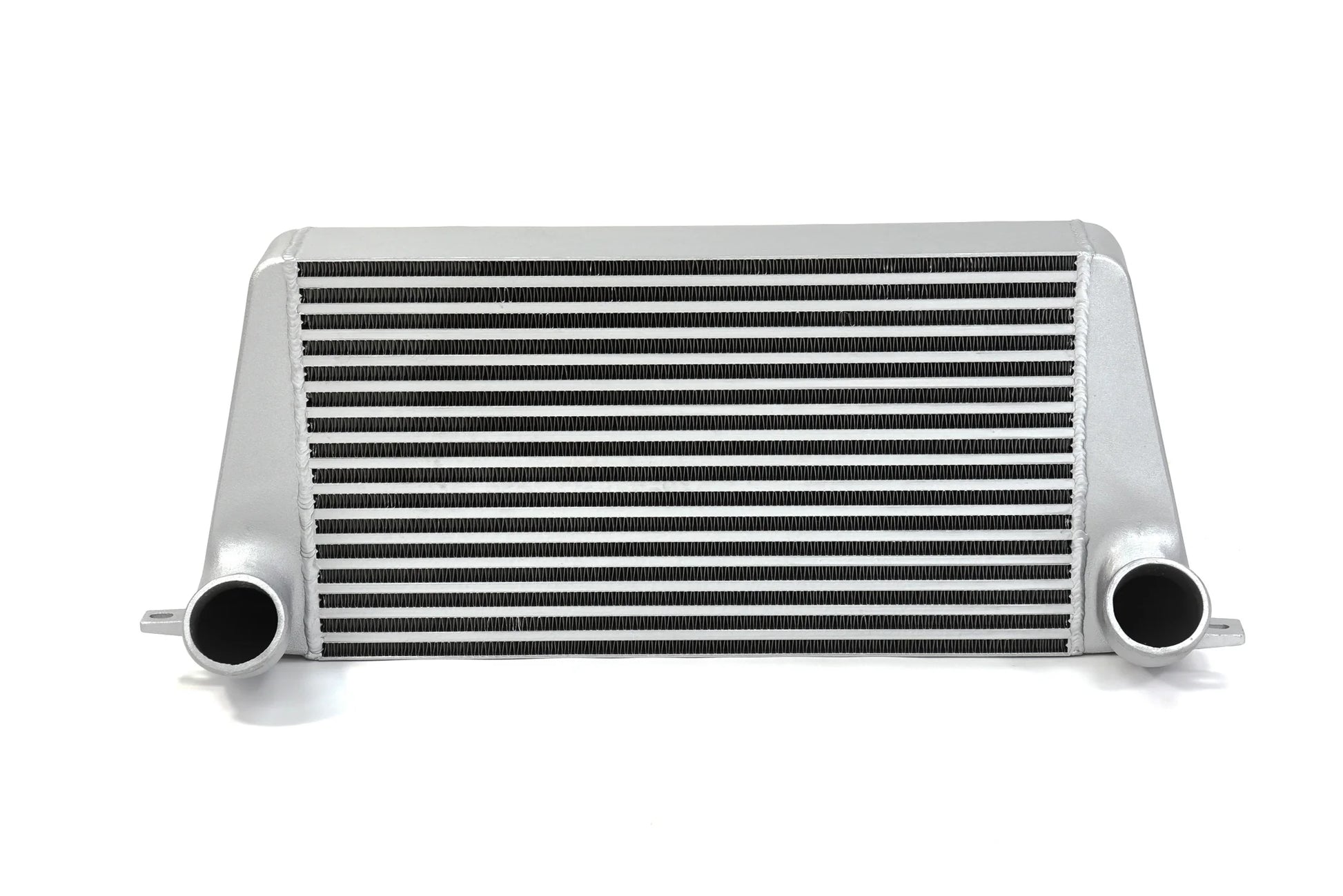

The ARM F3X FMIC is the perfect cooling solution for any stock turbo or upgraded turbo N20/N26 or N55 setup. With an intercooler core size of 20x11x3" and an overall volume of 660cu in. the ARM F30 FMIC is 235cu.in. or 36% larger than the stock N55 intercooler which comes in at only 425cu in. In addition, the ARM F30 FMIC utilizes an ultra-dense 14 fins per inch external core, giving it the best cooling performance possible.
FITMENT GUIDE
Make`
Chassis
Model
Engine
BMW
F22
228i
N20/N26 2.0L
BMW
F22
228i xDrive
N20/N26 2.0L
BMW
F22
M235i
N55 3.0L
BMW
F22
M235i xDrive
N55 3.0L
BMW
F23
228i
N20/N26 2.0L
BMW
F23
228i xDrive
N20/N26 2.0L
BMW
F23
M235i
N55 3.0L
BMW
F23
M235i xDrive
N55 3.0L
BMW
F30
320i
N20/N26 2.0L
BMW
F30
320i xDrive
N20/N26 2.0L
BMW
F30
328i
N20/N26 2.0L
BMW
F30
328i xDrive
N20/N26 2.0L
BMW
F30
335i
N55 3.0L
BMW
F30
335i xDrive
N55 3.0L
BMW
F31
328i xDrive
N20/N26 2.0L
BMW
F32
428i
N20/N26 2.0L
BMW
F32
428i xDrive
N20/N26 2.0L
BMW
F32
435i
N55 3.0L
BMW
F32
435i xDrive
N55 3.0L
BMW
F34
328i xDrive
N20/N26 2.0L
BMW
F34
335i xDrive
N55 3.0L
BMW
F36
428i
N20/N26 2.0L
BMW
F36
428i xDrive
N20/N26 2.0L
BMW
F36
435i
N55 3.0L
BMW
F36
435i xDrive
N55 3.0L
BMW
F87
M2
N55 3.0L
